i2c event scheduler packet More...

#include <i2c_driver.h>

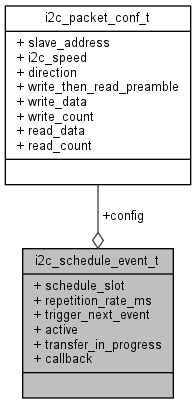

Collaboration diagram for i2c_schedule_event_t:

Public Attributes
i2c_packet_conf_t	config

uint8_t	schedule_slot
	the assigned slot in the schedule - READ ONLY!

int32_t	repetition_rate_ms
	schedule repetition rate in milliseconds. A value of 0 means no repetition (one-shot)

uint8_t	trigger_next_event
	number of event that should be scheduled immediately after the end of this one (repetition for next event should be 0)

int8_t	active
	indicates if event should be scheduled or not. Will be set to false after a one-shot event 0:false, 1:true

int8_t	transfer_in_progress
	flag indicates if this event is currently being processed. 0: false, 1: true, -1: uninitialised

i2c_callback_t *	callback
	callback function to be called when transfer finished.

Detailed Description

i2c event scheduler packet

The documentation for this struct was generated from the following files:
